Common Interfaces for the Analysis Structure

This page contains information about common interfaces used throughout the analysis infrastructure of LiSA, that are applied to several components to model shared properties, requirements and behaviors.

 Note:
This page contains class diagrams. Interfaces are represented with yellow rectangles, abstract classes with blue rectangles, and concrete classes with green rectangles. After type names, type parameters are reported, but their bounds are omitted for clarity. Only public members are listed in each type: the + symbol marks instance members, the * symbol marks static members, and a ! in front of the name denotes a member with a default implementation. Method-specific type parameters are written before the method name, wrapped in <>. When a class or interface has already been introduced in an earlier diagram, its inner members are omitted.

The Structured Representation Interface

A StructuredRepresentation is a way to represent the contents of a complex object in a structured way, such that it is (i) independent of its source, (ii) comparable with other representations (potentially originating from a different source), and (iii) serialisable. StricturedRepresentations are mainly used to produce human-readable representations of Lattice elements, and to serialize them in ouput files into a unique format so that several visualization tools can be built on top of the same output.

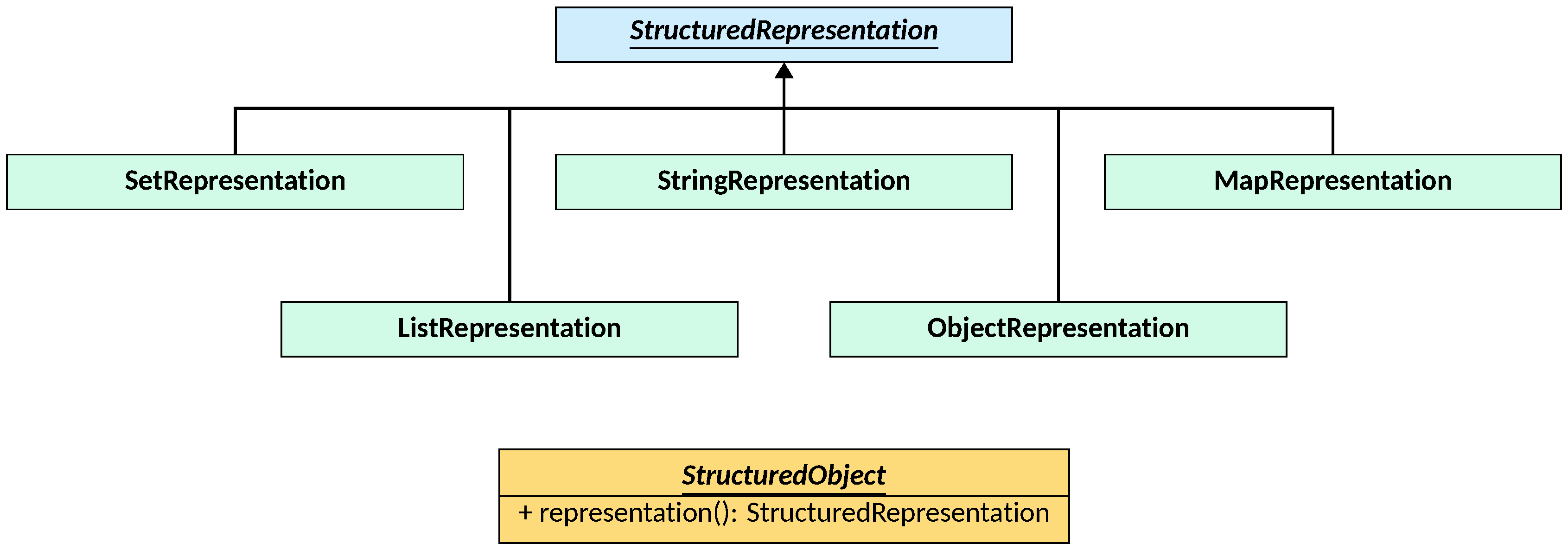

StructuredRepresentation is ab abstract class, that has five concrete subtypes:

• StringRepresentation: a representation of any object as a string;
• SetRepresentation: a representation of any object as a sorted set of StructuredRepresentation elements;
• ListRepresentation: a representation of any object as an ordered list of StructuredRepresentation elements;
• MapRepresentation: a representation of any object as a map from StructuredRepresentation keys to StructuredRepresentation elements;
• ObjectRepresentation: a representation of any object as a named collection of fields, each field being a StructuredRepresentation element.

Instances of these classes just have to be created by passing the appropriate values, and they will automatically provide the required functionalities (like comparability and serializability).

A StrucutredObject is any object that can produce a StructuredRepresentation of itself. The Lattice interface extends the StructuredObject interface, meaning that all lattices can produce a structured representation of themselves through the representation method.

The Scoped Object Interface

The ScopedObject interface defines the common operations objects can be scoped. Scoping is a mechanism provided bu LiSA to isolate parts of an object when entering a new context (e.g., a function call) and to restore them when exiting the context. Scoping is essential to implement Interprocedural Analyses, as it allows to track caller’s variables without polluting the callee state.

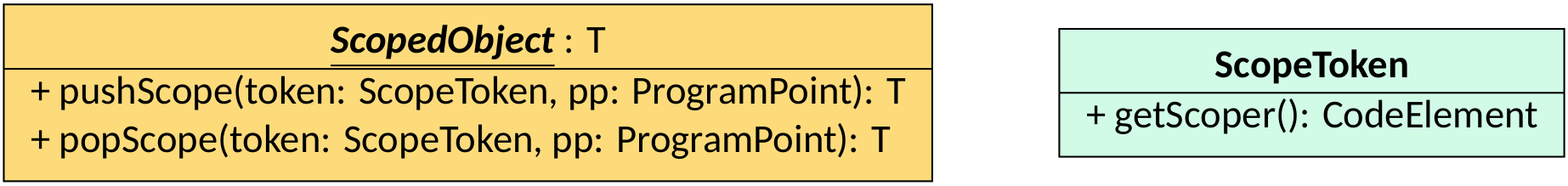

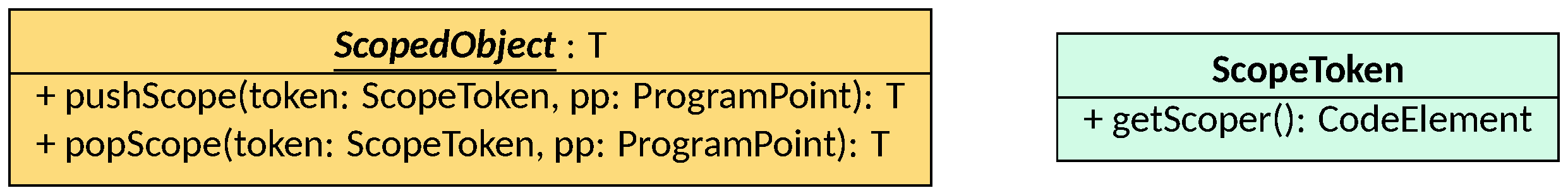

ScopedObject is parametric on the type T that is returned by its methods. The interface defines two methods: pushScope, that returns a new instance of the object where all information contained in it becomes hidden by the given scope token, and popScope, that restores information in the receiver by removing the scope specified by the token parameter. Implementations of these methods usually manipulate program variables (called Identifiers in Symbolic Expressions terms) by applying a sort of renaming: since SymbolicExpressions are instances of ScopedObject, pushScope and popScope implementations should recursively invoke these methods on all symbolic expression references they contain. This will cause an identifier x to be renamed to [scope]x, such that it won’t conflict with later definitions of x in inner scopes.

Scopes are indentified by ScopeToken instances, that are wrappers around a CodeElement (i.e., any program construct that has a position in the source program). This allows to easily identify scopes with program constructs like function calls. Both CodeElement and ProgramPoint are defined in the next section.

Minimal Program Components

To reduce dependencies between the analysis structure and the program structure, methods of analysis components that need to refer to program constructs use (when possible) minimal interfaces that expose only the necessary information.

Three such interfaces are used throughout the analysis structure:

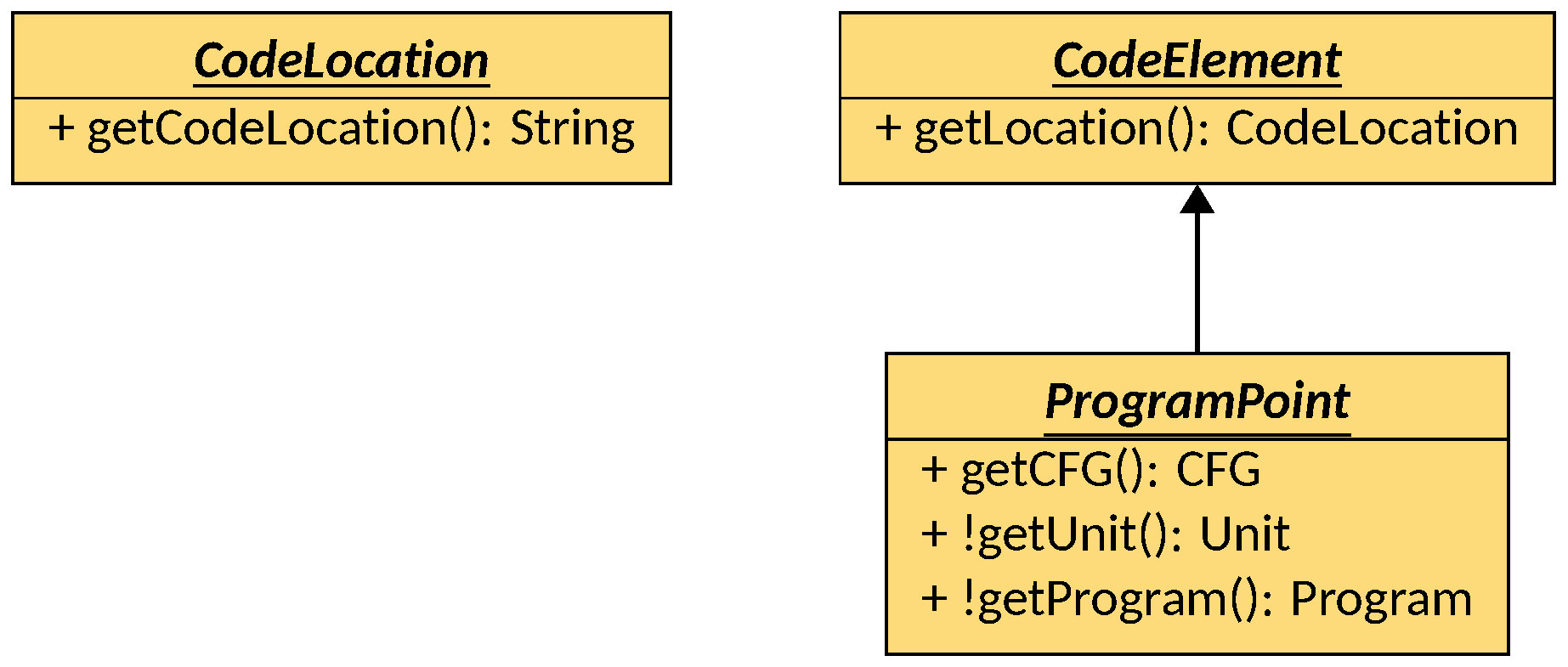

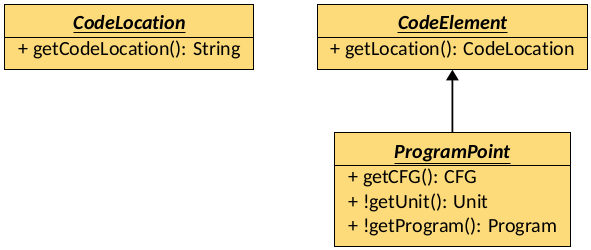

• CodeLocation: instances of this interface represent a position in the source program; it exposes a single method, getCodeLocation, that returns a textual representation of that location; note that since the program might be composed by either source files or binary files, no structure is imposed to CodeLocations as they might point to lines in a source file or offsets in a binary file;
• CodeElement: instances of this interface represent program constructs that have a position in the source program; since the program might be composed by either source files or binary files, the structure of a CodeElement is minimal, exposing only the getLocation method that returns the CodeLocation where the element is defined;
• ProgramPoint: instances of this interface represent specific points inside a control flow graph (CFG), that is part of a Unit of the Program; the main objective of this interface is to provide a way for analysis components to retrieve the Program where an instruction lies, so that it can be queried for language-specific properties.

Read more about CFGs, Units and Programs in their dedicated pages.
